PA 3mm - Platform Yellow
Temporary Abutments (PA)

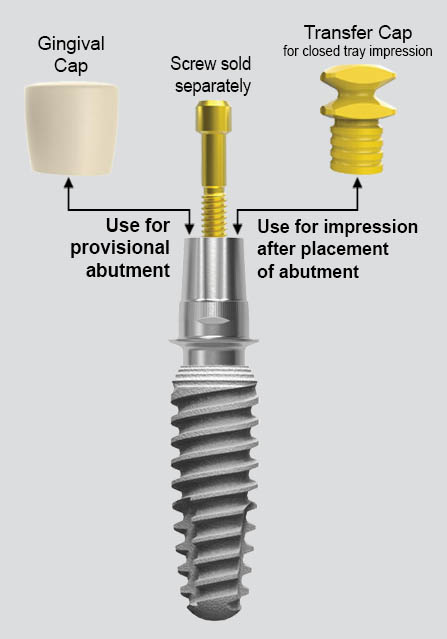

- Provisional dental prosthesis abutment
- Abutment with locking taper to implant allows for easy manipulation
- Abutment contour can be individually adapted, prepped or milled
- Precision impression caps allow for exact closed tray impressions over
the abutment as well as over the closed tray impression posts - Provisional prosthesis components like Gingival and wax-up caps
are also available - Gingival heights (GH) of 1.5mm
- Variable:
Available in various angulations: 0º - 10º - 15º - Abutment screw torque recommendations:
10-15 Ncm (3mm platform)
| Picture | Item # | Description | Angulation | Diameter (MM) | Gingival Height (MM) | |
|---|---|---|---|---|---|---|
|
PA5000 |

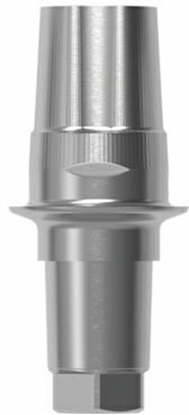

5.0 x 1.5mm 0° Provisional Abutment with 3mm Post Hex Screw not included |
0° | 5.0 | 1.5 | |
|
PA501515 |

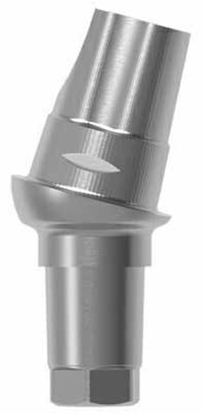

5.0 x 1.5mm 15° Provisional Abutment with 3mm Post Hex Screw not included |
15° | 5.0 | 1.5 | |
|
PA501015 |

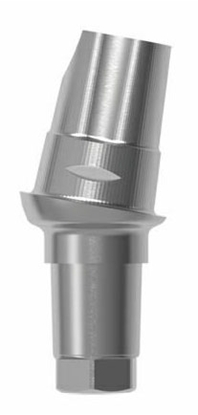

5.0 x 1.5mm 10° Provisional Abutment with 3mm Post Hex Screw not included |
10° | 5.0 | 1.5 | |
|
GK_PA50060 |

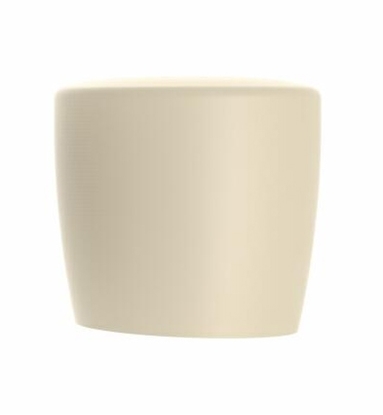

5.0 x 6.0mm Gingiva Cap for Provisional Abutments |
5.0 | 6.0 | ||
|
GK_PA50070 |

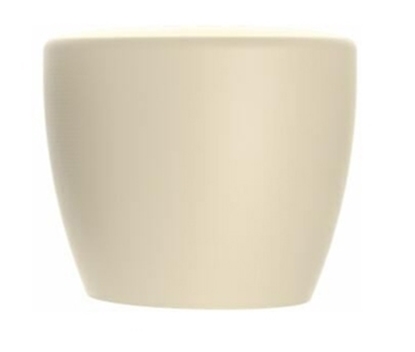

5.0 x 7.0mm Gingiva Cap for Provisional Abutments |
5.0 | 7.0 | ||
|
EA.TK50_k/Set |

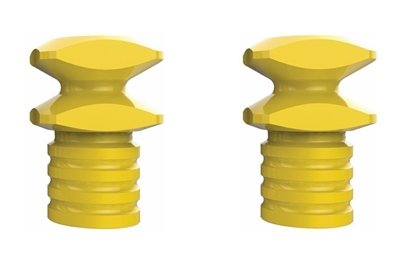

Transfer Cap short for closed tray impression K3Pro 3mm, Set of 2 |
||||
|
EAK_A5.0 |

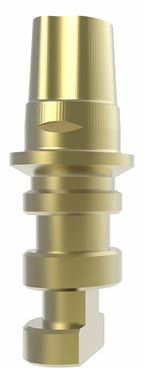

Preform Abutment Analog 3mm |
||||
|
ETS.K3Pro/3.Set |
K3 Pro Screw 3mm, Set of 2 |
